To start, you must set CancelMenu to True in the ExpandButtonDown event:
‘The ExpandButtonDown event is fired when the ShortcutBar’s
‘expand button is clicked.
Private Sub wndShortcutBar_ExpandButtonDown(CancelMenu As Boolean)
‘Cancels the default menu that is displayed when the expand button is pressed.
‘The default button only displays the “Show More Buttons” and “Show Fewer
‘Buttons” commands.
CancelMenu = True
Dim Popup As CommandBar
Dim Control As CommandBarControl
Dim SubControl As CommandBarControl
Dim i As Long
Dim Item As ShortcutBarItem
In this sample we will use the CommandBars to create our expand menu. So we will need to add any icons to the CommandBars Icons collection.
‘Add the icons from the ShortcutBar to the Commandbars to
‘be used in the commandbar popup that will be created
CommandBars.Icons.AddIcons wndShortcutBar.Icons
Then create a Popup Commandbar that will be used as the ShortcutBar’s new expand button popup:
‘Creates a popup command bar we will use as the
‘ShortcutBar’s expand button popup menu
Set Popup = CommandBars.Add(“Popup”, xtpBarPopup)

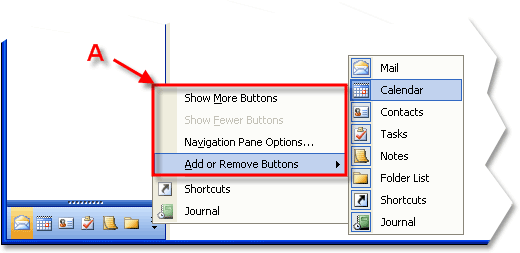

Now add some buttons to the popup menu. The picture below shows where these buttons will be displayed:
‘Adds buttons to the popup command bar, we will add a total
‘of 9 commands
With Popup
‘Adds the “Show More Buttons” button
Set Control = frmMain.AddButton(.Controls, xtpControlButton, _
SHORTCUT_SHOW_MORE, “Show &More Buttons”)
‘Enable this button if all buttons are not expanded
Control.Enabled = (wndShortcutBar.ExpandedLinesCount <> 9)
‘Adds the “Show Fewer Buttons” button
Set Control = frmMain.AddButton(.Controls, xtpControlButton, _
SHORTCUT_SHOW_FEWER, “Show &Fewer Buttons”)
‘Enable this button if there are 1 or more buttons expanded
Control.Enabled = (wndShortcutBar.ExpandedLinesCount <> 1)
‘Adds the “Navigation Pane Options…” button as in Outlook 2003,
‘this will do nothing in our sample
AddButton .Controls, xtpControlButton, SHORTCUT_NAVIGATE_PANE_OPTIONS, _
“Na&vigation Pane Options…”

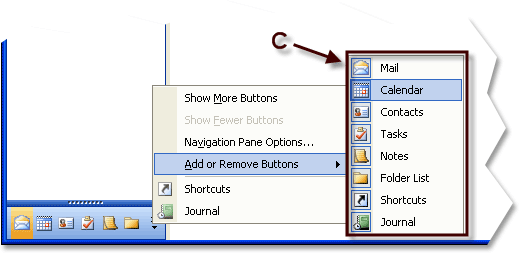

Now we will add the popup button that contains a button for each of the ShortcutBar items. These buttons will be used to hide\show the corresponding item in the ShortcutBar. The picture below shows where these items will be displayed:
‘Adds the “Add or Remove Buttons” popup menu. This popup will
‘contain a button that corresponds to each item that is in the
‘ShortcutBar. The buttons will allow you to hide\show items
‘in the ShortcutBar
Set Control = AddButton(.Controls, xtpControlButtonPopup, _
SHORTCUT_ADD_REMOVE_BUTTONS, “&Add or Remove Buttons”)
‘Adds a button for each shortcutbar item to the
‘”Add or Remove Buttons” popup menu
For Each Item In wndShortcutBar
If Not Item.Id = -1 Then
With Control.CommandBar
Set SubControl = AddButton(.Controls, xtpControlButton, _
Item.Id, Item.Caption)
SubControl.IconId = Item.Id
‘set the button as “checked” if the Item is
‘currently visible in the Shortcutbar
SubControl.Checked = Item.Visible
End With
End If
Next

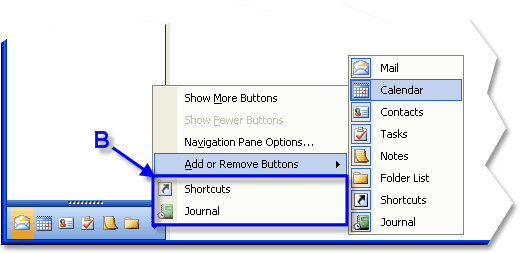

The last part of the popup will contain a quick link to all of the ShortcutBar items that are currently hidden. The picture below shoes where these items are displayed:
Dim BeginGroup As Boolean
BeginGroup = True
‘Adds all hidden shortcut bar buttons to the popup menu
‘This will give you access to the buttons not currently
‘displayed in the ShortcutBar
For Each Item In wndShortcutBar
‘If shortcut bar item is hidden, then add it to the popup menu
If (Item.Hidden) Then
AddButton .Controls, xtpControlButton, Item.Id, Item.Caption, _
BeginGroup
BeginGroup = False
End If
Next
End With
Next you will add the message handleing from the popup menu:
End With
‘stores the ID of the selected control from the expand button popup menu.
Dim nCommand As Long
‘Displays the expand button popup. Control will not pass
‘back to the code until the popup menu is closed.
‘Passing TPM_RETURNCMD into ShowPopup will cause the ID of the control to
‘be returned when a control in the popup is clicked. When using the
‘TPM_RETURNCMD parameter, the CommandBars_Execute event does not fire
‘because the ID of the control is returned instead.
nCommand = Popup.ShowPopup(TPM_RETURNCMD)
‘Popup is closed and the user did not select anything, they might have
‘click on something other than the popup menu
If (nCommand = 0) Then Exit Sub
‘A control was selected from the popup menu. Determines which control
‘was selected.
Select Case (nCommand)
Case SHORTCUT_INBOX To SHORTCUT_JOURNAL
‘Hides or displays the ShortcutBar item that was clicked
wndShortcutBar.FindItem(nCommand).Visible = _
Not wndShortcutBar.FindItem(nCommand).Visible
Case SHORTCUT_SHOW_MORE:
‘Expands the Shortcut list by 1
wndShortcutBar.ExpandedLinesCount = _
wndShortcutBar.ExpandedLinesCount + 1
Case SHORTCUT_SHOW_FEWER:
‘Collapses the Shortcut list by 1
wndShortcutBar.ExpandedLinesCount = _
wndShortcutBar.ExpandedLinesCount – 1
Case SHORTCUT_NAVIGATE_PANE_OPTIONS:
Debug.Print “Navigate Pane Options Clicked”
End Select
End Sub
Below is the complete code for the ExpandButtonDown event:
‘The ExpandButtonDown event is fired when the ShortcutBar’s
‘expand button is clicked.
Private Sub wndShortcutBar_ExpandButtonDown(CancelMenu As Boolean)
‘Cancels the default menu that is displayed when the expand button is pressed.
‘The default button only displays the “Show More Buttons” and “Show Fewer
‘Buttons” commands.
CancelMenu = True
Dim Popup As CommandBar
Dim Control As CommandBarControl
Dim SubControl As CommandBarControl
Dim i As Long
Dim Item As ShortcutBarItem
‘Add the icons from the ShortcutBar to the Commandbars to
‘be used in the commandbar popup that will be created
CommandBars.Icons.AddIcons wndShortcutBar.Icons
‘Creates a popup command bar we will use as the
‘ShortcutBar’s expand button popup menu
Set Popup = CommandBars.Add(“Popup”, xtpBarPopup)
‘Adds buttons to the popup command bar, we will add a total
‘of 9 commands
With Popup
‘Adds the “Show More Buttons” button
Set Control = frmMain.AddButton(.Controls, xtpControlButton, _
SHORTCUT_SHOW_MORE, “Show &More Buttons”)
‘Enable this button if all buttons are not expanded
Control.Enabled = (wndShortcutBar.ExpandedLinesCount <> 9)
‘Adds the “Show Fewer Buttons” button
Set Control = frmMain.AddButton(.Controls, xtpControlButton, _
SHORTCUT_SHOW_FEWER, “Show &Fewer Buttons”)
‘Enable this button if there are 1 or more buttons expanded
Control.Enabled = (wndShortcutBar.ExpandedLinesCount <> 1)
‘Adds the “Navigation Pane Options…” button as in Outlook 2003,
‘this will do nothing in our sample
AddButton .Controls, xtpControlButton, SHORTCUT_NAVIGATE_PANE_OPTIONS, _
“Na&vigation Pane Options…”
‘Adds the “Add or Remove Buttons” popup menu. This popup will
‘contain a button that corresponds to each item that is in the
‘ShortcutBar. The buttons will allow you to hide\show items
‘in the ShortcutBar
Set Control = AddButton(.Controls, xtpControlButtonPopup, _
SHORTCUT_ADD_REMOVE_BUTTONS, “&Add or Remove Buttons”)
‘Adds a button for each shortcutbar item to the
‘”Add or Remove Buttons” popup menu
For Each Item In wndShortcutBar
If Not Item.Id = -1 Then
With Control.CommandBar
Set SubControl = AddButton(.Controls, xtpControlButton, _
Item.Id, Item.Caption)
SubControl.IconId = Item.Id
‘set the button as “checked” if the Item is
‘currently visible in the Shortcutbar
SubControl.Checked = Item.Visible
End With
End If
Next
Dim BeginGroup As Boolean
BeginGroup = True
‘Adds all hidden shortcut bar buttons to the popup menu
‘This will give you access to the buttons not currently
‘displayed in the ShortcutBar
For Each Item In wndShortcutBar
‘If shortcut bar item is hidden, then add it to the popup menu
If (Item.Hidden) Then
AddButton .Controls, xtpControlButton, Item.Id, Item.Caption, _
BeginGroup
BeginGroup = False
End If
Next
End With
‘stores the ID of the selected control from the expand button popup menu.
Dim nCommand As Long
‘Displays the expand button popup. Control will not pass
‘back to the code until the popup menu is closed.
‘Passing TPM_RETURNCMD into ShowPopup will cause the ID of the control to
‘be returned when a control in the popup is clicked. When using the
‘TPM_RETURNCMD parameter, the CommandBars_Execute event does not fire
‘because the ID of the control is returned instead.
nCommand = Popup.ShowPopup(TPM_RETURNCMD)
‘Popup is closed and the user did not select anything, they might have
‘click on something other than the popup menu
If (nCommand = 0) Then Exit Sub
‘A control was selected from the popup menu. Determines which control
‘was selected.
Select Case (nCommand)
Case SHORTCUT_INBOX To SHORTCUT_JOURNAL
‘Hides or displays the ShortcutBar item that was clicked
wndShortcutBar.FindItem(nCommand).Visible = _
Not wndShortcutBar.FindItem(nCommand).Visible
Case SHORTCUT_SHOW_MORE:
‘Expands the Shortcut list by 1
wndShortcutBar.ExpandedLinesCount = _
wndShortcutBar.ExpandedLinesCount + 1
Case SHORTCUT_SHOW_FEWER:
‘Collapses the Shortcut list by 1
wndShortcutBar.ExpandedLinesCount = _
wndShortcutBar.ExpandedLinesCount – 1
Case SHORTCUT_NAVIGATE_PANE_OPTIONS:
Debug.Print “Navigate Pane Options Clicked”
End Select
End Sub
CustomExpandButton.zip – Source Files with Demo Project [39 KB]
